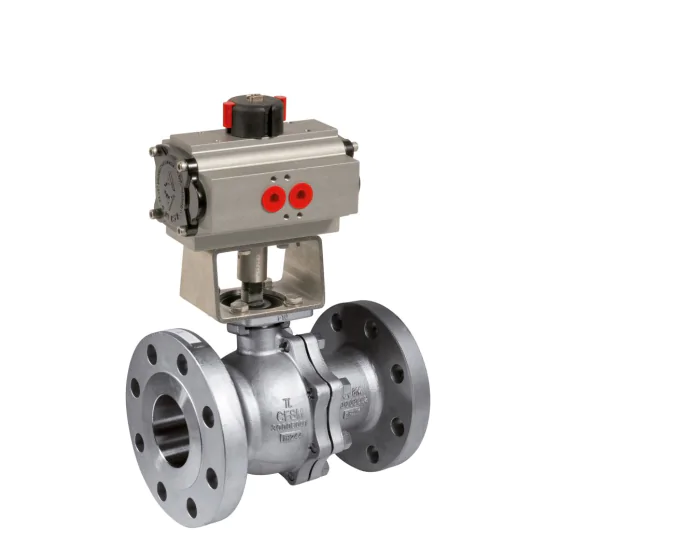

The 769 series stainless steel ball valve has a CF8M body and ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting | 274442015100 | S1003023 |
€357.00
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return | 274442016101 | S1003024 |
€394.74
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting | 274443015101 | S1003025 |
€406.99
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return | 274443016102 | S1003026 |
€459.00
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting | 274444015101 | S1003027 |
€478.44
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return | 274444016102 | S1003028 |
€530.59
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting | 274446015101 | S1003029 |
€700.11
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return | 274446016103 | S1003030 |
€772.71
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting | 274447015103 | S1003031 |
€843.33
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return | 274447016104 | S1003032 |
€909.21
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting | 274449015105 | S1003033 |
€1,575.74
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return | 274449016106 | S1003034 |
€1,738.46
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting | 274450015105 | S1003035 |
€2,328.10
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return | 274450016107 | S1003036 |
€2,701.17
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting | 274452015107 | S1003037 |
€4,676.49
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return | 274452016108 | S1003038 |
€5,068.44
(excl. btw)
|
add to cart |
